plywood veneer peeling line

Date:Nov 14, 2025
View:
About:OCEANPINES group comes from linyi city shandong province China. The main products are phenolic surface film,wood veneer, plywood production machinese(veneer peeling leathe,wood veneer dryer,hot press machine, cold press machine, glue spreader, cutting saw,boiler etc.). We also provide the relative technical support to help customers solve the problems encountered in the production process.Our company will cooperate with customers from all over the world with professional service and excellent quality

Send Inquiry

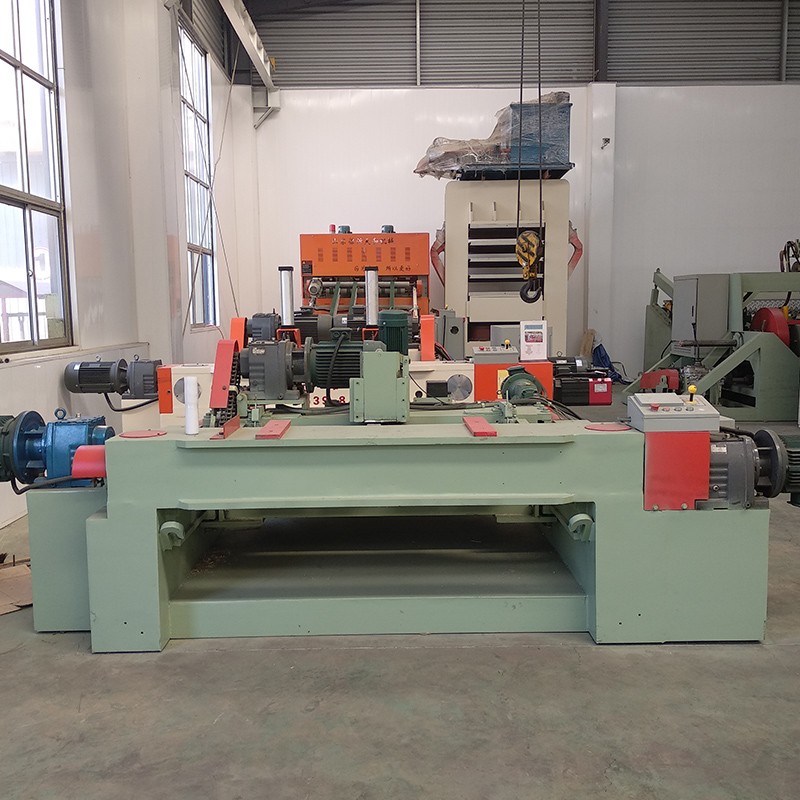

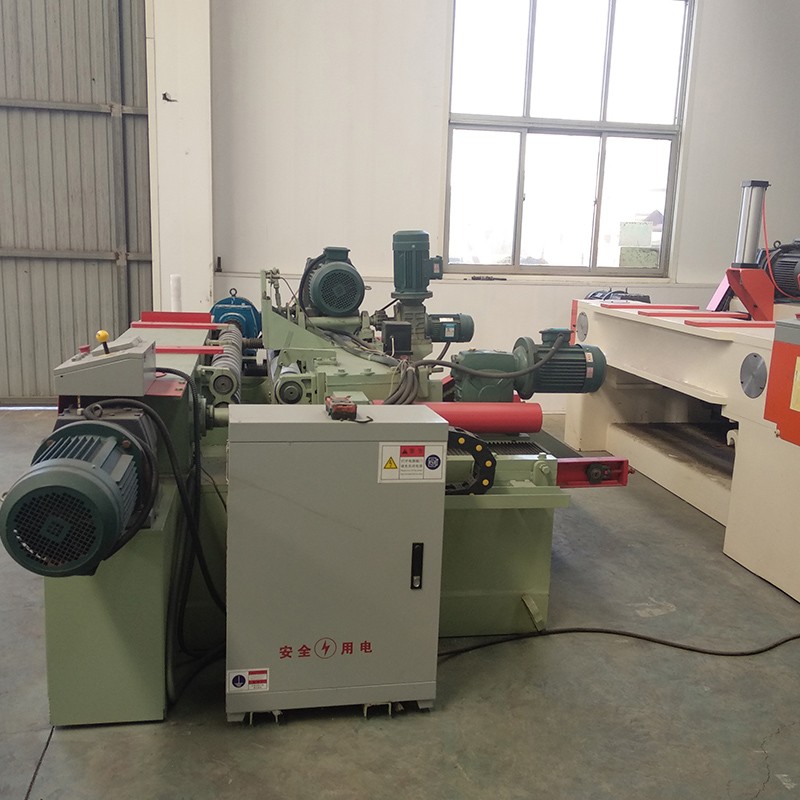

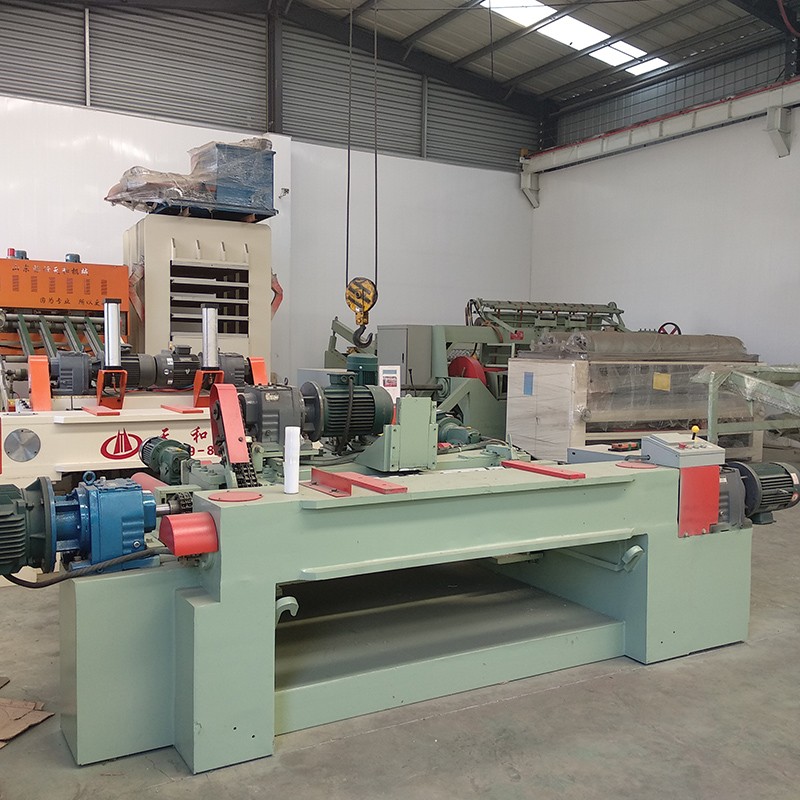

Veneer lathe is used for producing the core veneer and face veneer. There are 2 main sizes : 1300mm and 2600mm

1: spindle type and spindless type

2: common type and heavy tpye

3: the peeling speed can be adjusted

4: with the automatic stacking machine

Spindless type :

Peeling thickness		0.4-5 mm	0.5-3mm
Max. Working length		1300 mm	2600 mm
Max. Working diameter		500 mm	500 mm
remaining core diameter		35mm	35mm
Main spindle speed		60 m/min or 80m/min	60 m/min
Power	double roller	7.5 Kw×2pcs	11KwX2
	single roller	5.5 Kw×2pcs	7.5KwX2
	feeding motor	7.5Kw×1pcs（SERVO）	15KwX1（SERVO）
	rotary cutter	2.2Kw×1pcs（SERVO）	5.5KwX1（SERVO）
	belt conveyor	1.5Kw×1pcs	2.2KwX1
Weight		6000 kg	9000 kg
Overall dimensions		450022501550 mm	5900X2150X1600 mm

Spindle type:

2600 Spindle peeling machine

Peeling thickness 0.15-2.5mm

Max. Working diameter 1000 mm

Max. Working length 2600 mm

Remained diameter of logs 120 mm

Main spindle speed 80r/min

Main motor power 18.5 KW

Net weight 6500 kg

Overall dimensions 5800*2180*2260 mm
