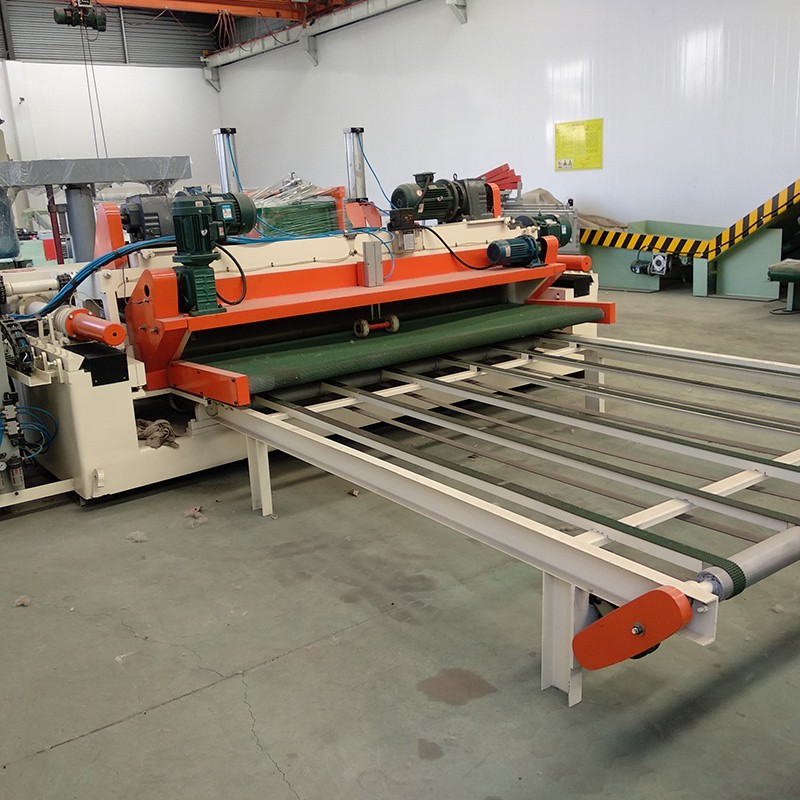

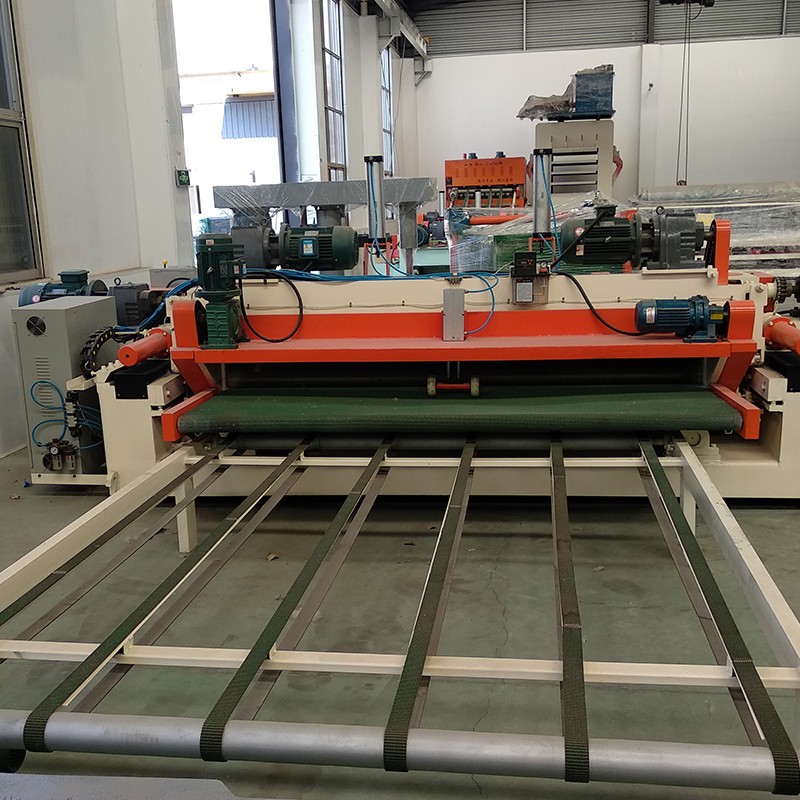

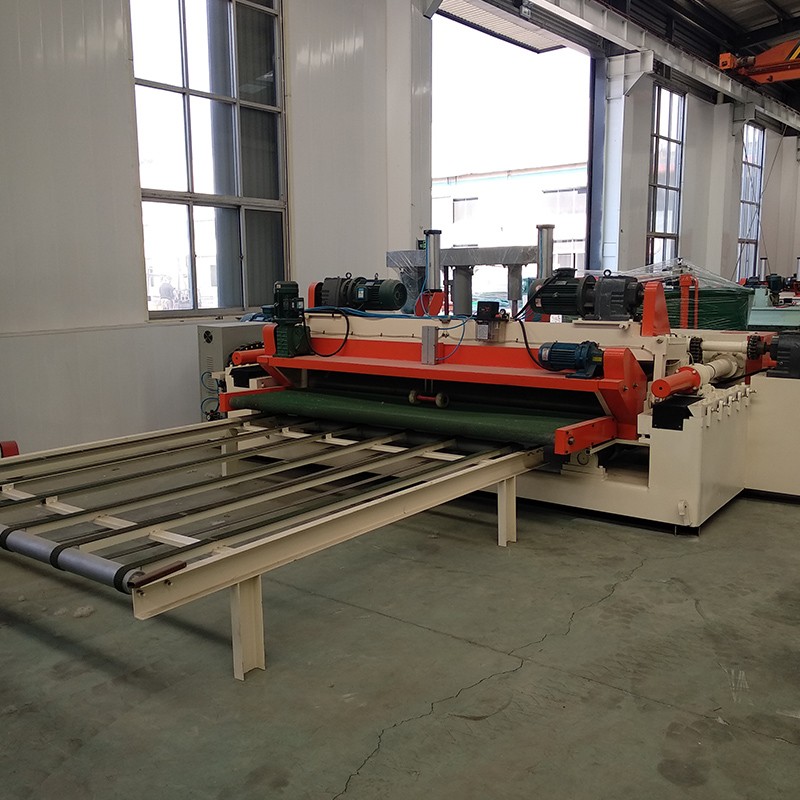

name: 4ft veneer peeling machine
date: 2021-01-18 09:07:31
view: 207
about:
OCEANPINES group comes from linyi city shandong province China. The main products are phenolic surface film,wood veneer, plywood production machinese(veneer peeling leathe,wood veneer dryer,hot press machine, cold press machine, glue spreader, cutting saw...
Veneer lathe is used for producing the core veneer and face veneer. There are 2 main sizes : 1300mm and 2600mm
1: spindle type and spindless type
2: common type and heavy tpye
3: the peeling speed can be adjusted
4: with the automatic stacking machine
Spindless type :
|
Peeling thickness
|
0.4-5 mm
|
0.5-3mm
|
|
Max. Working length
|
1300 mm
|
2600 mm
|
|
Max. Working diameter
|
500 mm
|
500 mm
|
|
remaining core diameter
|
35mm
|
35mm
|
|
Main spindle speed
|
60 m/min or 80m/min
|
60 m/min
|
|
Power
|
double roller
|
7.5 Kw×2pcs
|
11KwX2
|
|
single roller
|
5.5 Kw×2pcs
|
7.5KwX2
|
|
feeding motor
|
7.5Kw×1pcs（SERVO）
|
15KwX1（SERVO）
|
|
rotary cutter
|
2.2Kw×1pcs（SERVO）
|
5.5KwX1（SERVO）
|
|
belt conveyor
|
1.5Kw×1pcs
|
2.2KwX1
|
|
Weight
|
6000 kg
|
9000 kg
|
|
Overall dimensions
|
4500*2250*1550 mm
|
5900X2150X1600 mm
|
Spindle type:
|
2600 Spindle peeling machine
|
Peeling thickness 0.15-2.5mm
Max. Working diameter 1000 mm
Max. Working length 2600 mm
Remained diameter of logs 120 mm
Main spindle speed 80r/min
Main motor power 18.5 KW
Net weight 6500 kg
Overall dimensions 5800*2180*2260 mm
|
