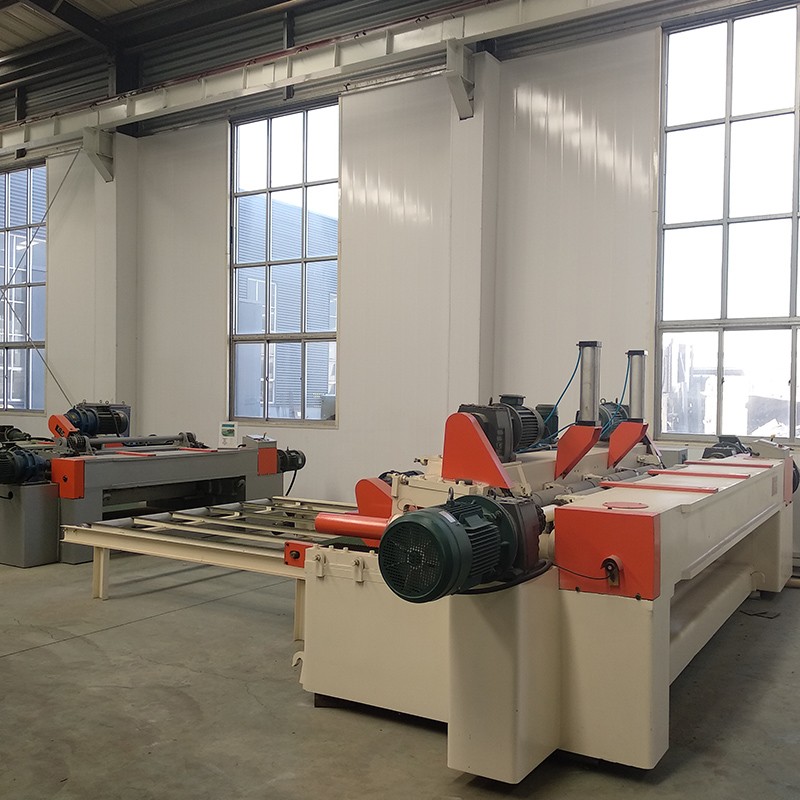

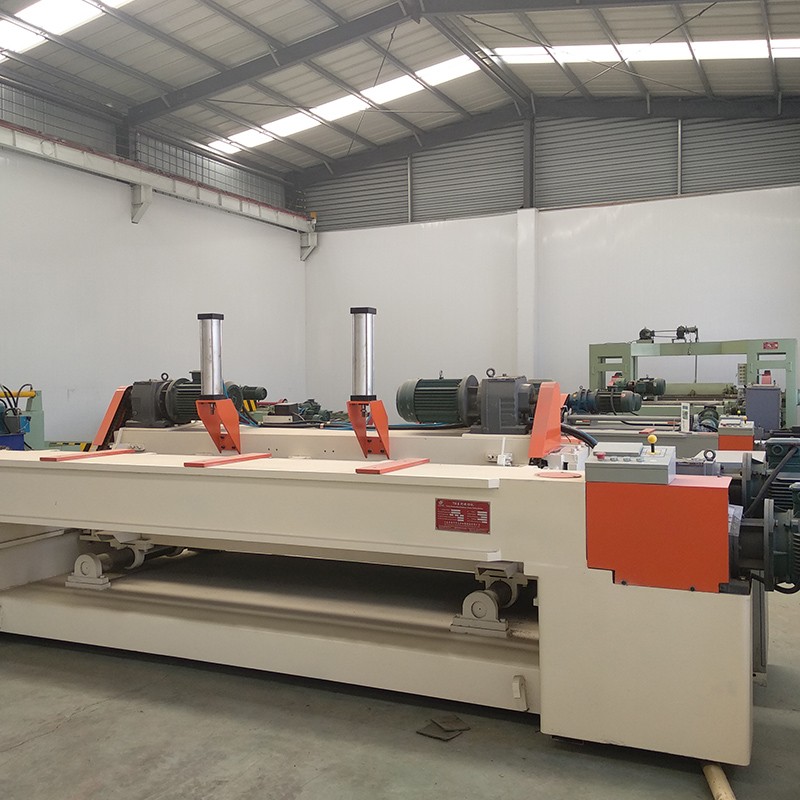

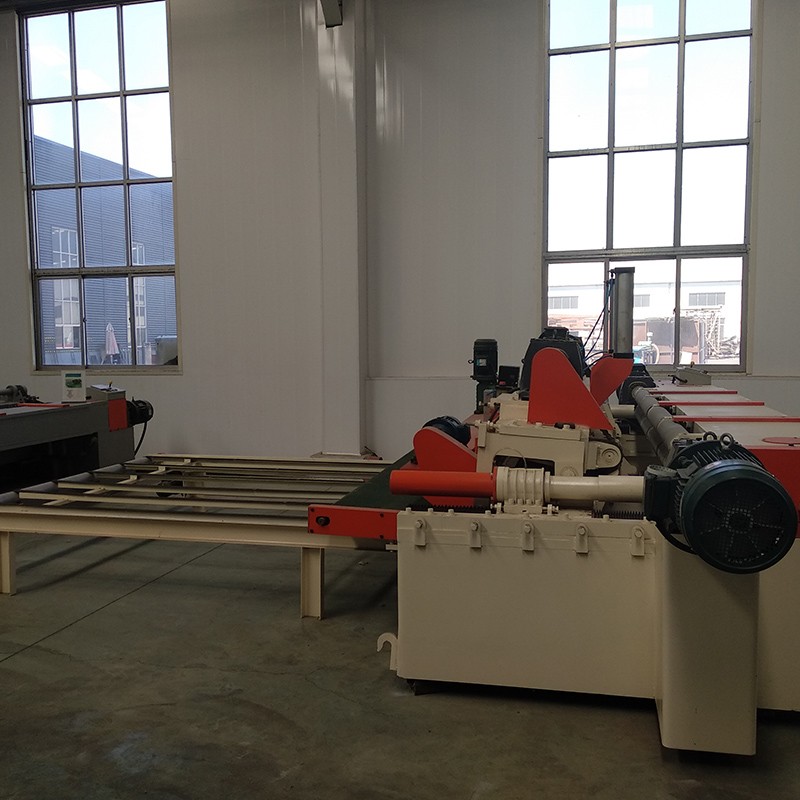

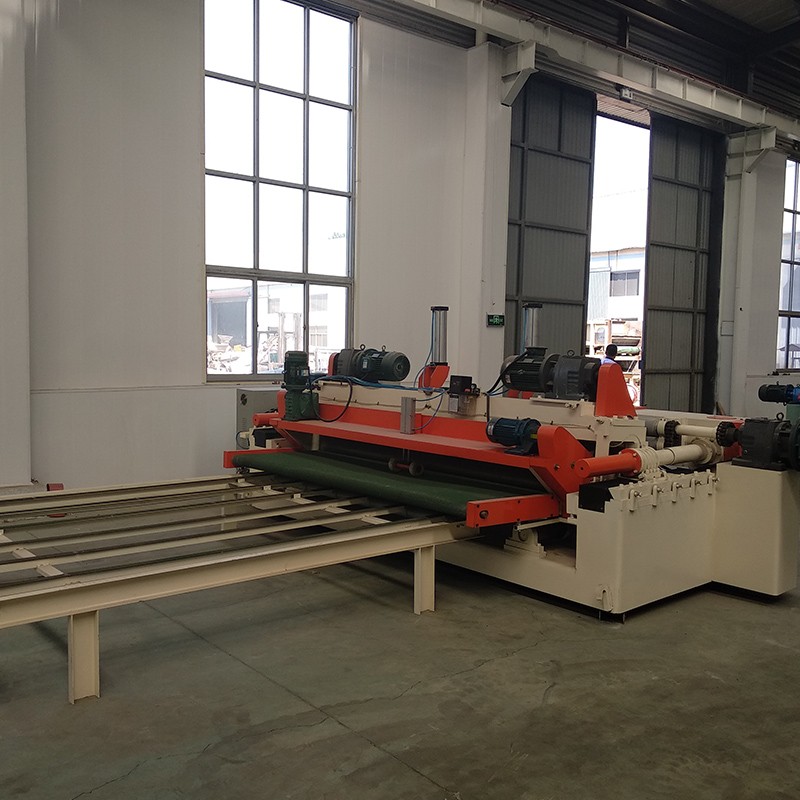

Veneer lathe is used for producing the core veneer and face veneer. There are 2 main sizes : 1300mm and 2600mm
1: spindle type and spindless type
2: common type and heavy tpye
3: the peeling speed can be adjusted
4: with the automatic stacking machine
Spindless type :
|
Peeling thickness
|
0.4-5 mm
|
0.5-3mm
|
|
Max. Working length
|
1300 mm
|
2600 mm
|
|
Max. Working diameter
|
500 mm
|
500 mm
|
|
remaining core diameter
|
35mm
|
35mm
|
|
Main spindle speed
|
60 m/min or 80m/min
|
60 m/min
|
|
Power
|
double roller
|
7.5 Kw×2pcs
|
11KwX2
|
|
single roller
|
5.5 Kw×2pcs
|
7.5KwX2
|
|
feeding motor
|
7.5Kw×1pcs（SERVO）
|
15KwX1（SERVO）
|
|
rotary cutter
|
2.2Kw×1pcs（SERVO）
|
5.5KwX1（SERVO）
|
|
belt conveyor
|
1.5Kw×1pcs
|
2.2KwX1
|
|
Weight
|
6000 kg
|
9000 kg
|
|
Overall dimensions
|
4500*2250*1550 mm
|
5900X2150X1600 mm
|
Spindle type:
|
2600 Spindle peeling machine
|
Peeling thickness 0.15-2.5mm
Max. Working diameter 1000 mm
Max. Working length 2600 mm
Remained diameter of logs 120 mm
Main spindle speed 80r/min
Main motor power 18.5 KW
Net weight 6500 kg
Overall dimensions 5800*2180*2260 mm
|
