name: 600T hydraulic hot press machine
date: 2021-01-18 09:42:09
view: 159
about:
OCEANPINES group comes from linyi city shandong province China. The main products are phenolic surface film,wood veneer, plywood production machinese(veneer peeling leathe,wood veneer dryer,hot press machine, cold press machine, glue spreader, cutting saw...

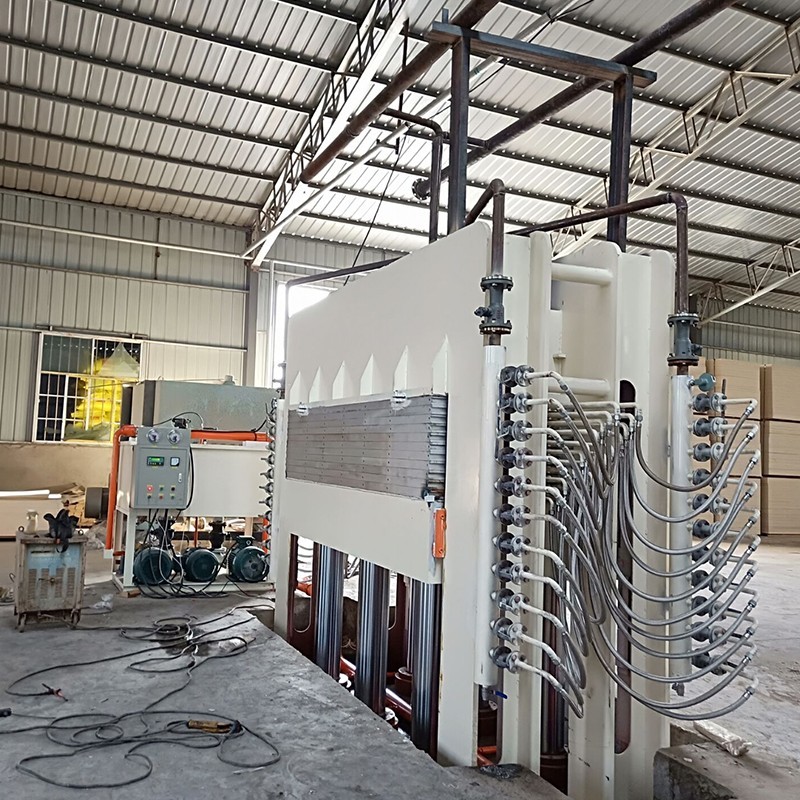

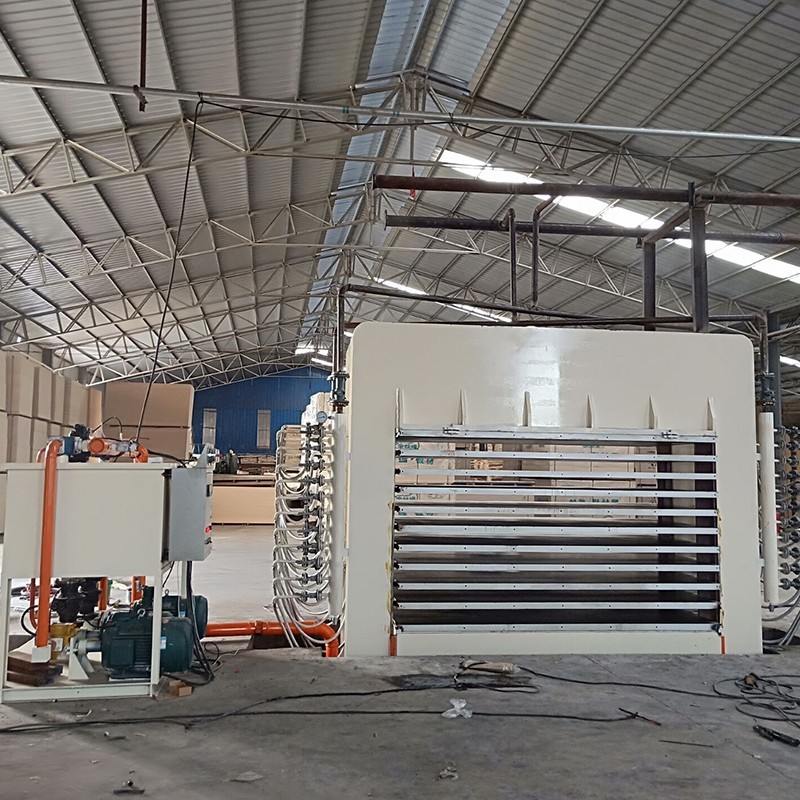

Plywood hot press machine
Plywood hot press machine is one of the main equipment in the plywood production line , which is used for pressing the glued slab. The hot press can be customized with different pressure and openings according to customer’s requirement.
If laminating nature veneer /phenolic film paper /melamine paper on based board, we can supply the stainless steel plates and cushion pads.
Nominal Pressure | 800 T | 600T |
Top beam (mm) | 1000 | 900 |
Bottom beam (mm) | 1000 | 900 |
Middle beam | 450 | 450 |
Hot Press plate (mm) | 2700*1370*52mm | 2700*1370*52mm |
Finish piece dimension | 1220*2440mm | 1220*2440mm |
Opening | 10 | 10 |
Layers distance | 100mm | 70 |
Heating method | Steam or thermal oil | Steam or thermal oil |
Board input | 8’ side | 8’ side |
Hydraulic station | 2 pcs 400# Gear pump 1pcs 25# plunger pump | 2 sets 280# pump and 1 set 10ml /r plunger pump |
Cylinder | φ260mm *6 | φ260 mm*4 |
Cylinder working distance | 1050mm | 1050mm |
Total power (kw) | 18.5kw *2+11kw | 15kw *2+11kw |
frame | Combined | Combined |
Weight | Approx. 33,000 Kgs | Approx. 40,000 Kgs |
Overall dimensions (mm) | 3450*1370*4300mm | 3450*1370*4400 mm |
