name: Plywood pre-press machine
date: 2021-01-18 09:52:33
view: 212
about:
OCEANPINES group comes from linyi city shandong province China. The main products are phenolic surface film,wood veneer, plywood production machinese(veneer peeling leathe,wood veneer dryer,hot press machine, cold press machine, glue spreader, cutting saw...
Plywood cold press machine

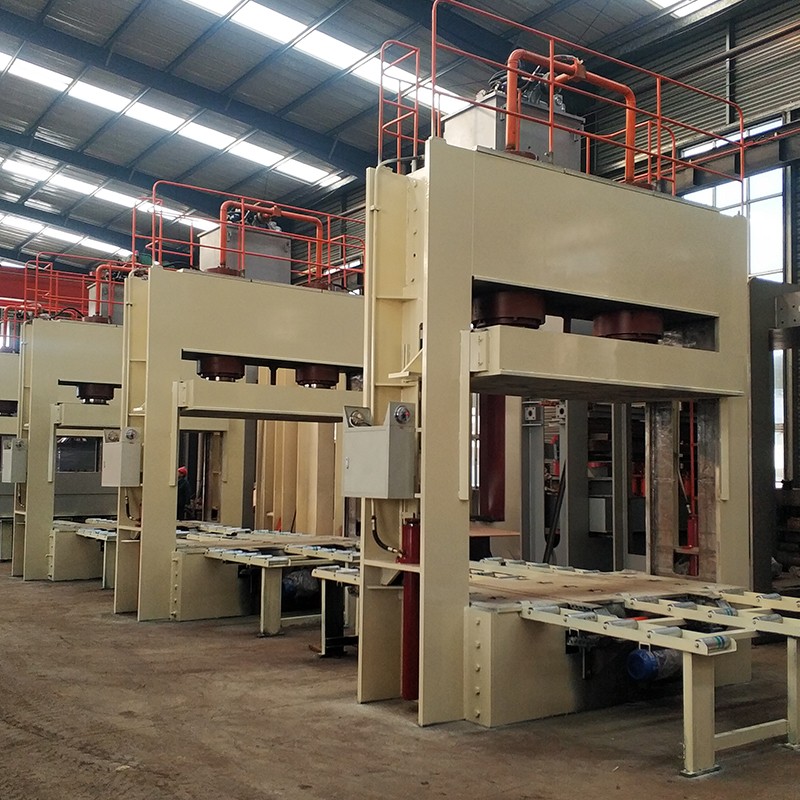

Plywood cold press machine(pre-press machine) is the auxiliary machine in plywood production line, which is used to shorten the hot press time and improve the quality of plywood.
1: 2 types: top cylinders and bottom cylinders
2: automatic feeding and discharge device
3: be customized
Nominal pressure | 600(cylinder on bottom) | 500T(cylinder on Top) |
Cylinder diameter | 400 mm | 360 mm |
Cylinder No. | 2 | 2 |
Working stroke | 1050 mm | 1050 mm |
Platen size | 2700*1370 mm | 2700*1370 mm |
Opening distance | 1600 mm | 1600 mm |
Oil pressure | 25 Mpa | 25 Mpa |
Upper/Middle/Bottom beam | 900/450/900 mm | 900/450/900 mm |
Thickness of the frame | 40 mm | 35 mm |
Power | 15kw+2.2kw | 15kw+2.2kw |
Weight | 16T | 15T |
Overall dimensions | 3450*1370*4600mm | 3450*1370*4600 mm |
frame | Combined frame | Combined frame |
