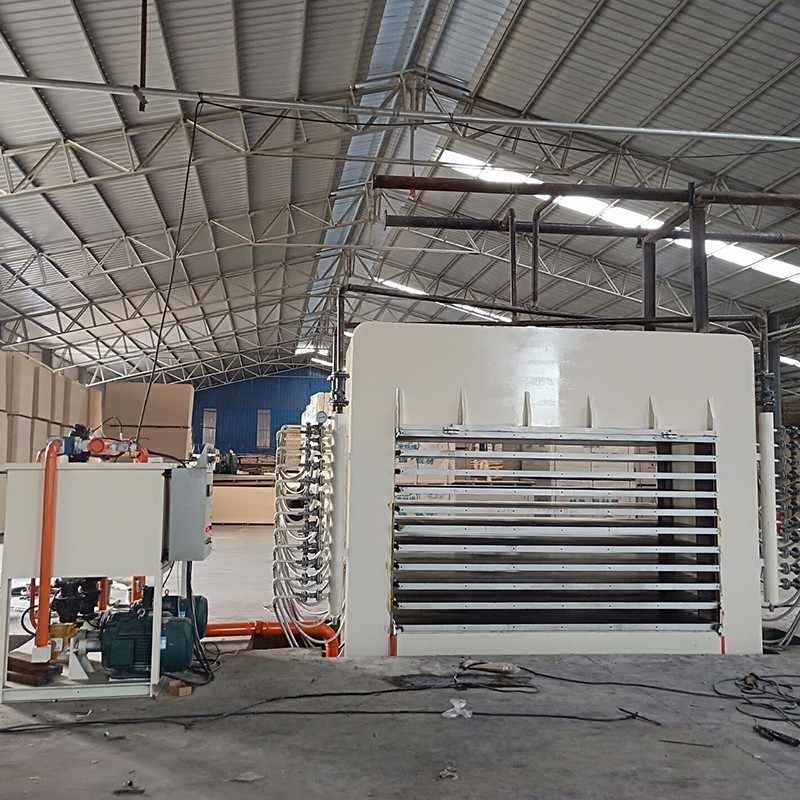

Plywood hot press machine
Plywood hot press machine is one of the main equipment in the plywood production line , which is used for pressing the glued slab. The hot press can be customized with different pressure and openings according to customer’s requirement.
If laminating nature veneer /phenolic film paper /melamine paper on based board, we can supply the stainless steel plates and cushion pads.
Nominal Pressure | 800 T | 600T |
Top beam (mm) | 1000 | 900 |
Bottom beam (mm) | 1000 | 900 |
Middle beam | 450 | 450 |
Hot Press plate (mm) | 2700*1370*52mm | 2700*1370*52mm |
Finish piece dimension | 1220*2440mm | 1220*2440mm |
Opening | 10 | 10 |
Layers distance | 100mm | 70 |
Heating method | Steam or thermal oil | Steam or thermal oil |
Board input | 8’ side | 8’ side |
Hydraulic station | 2 pcs 400# Gear pump 1pcs 25# plunger pump | 2 sets 280# pump and 1 set 10ml /r plunger pump |
Cylinder | φ260mm *6 | φ260 mm*4 |
Cylinder working distance | 1050mm | 1050mm |
Total power (kw) | 18.5kw *2+11kw | 15kw *2+11kw |
frame | Combined | Combined |
Weight | Approx. 33,000 Kgs | Approx. 40,000 Kgs |
Overall dimensions (mm) | 3450*1370*4300mm | 3450*1370*4400 mm |
