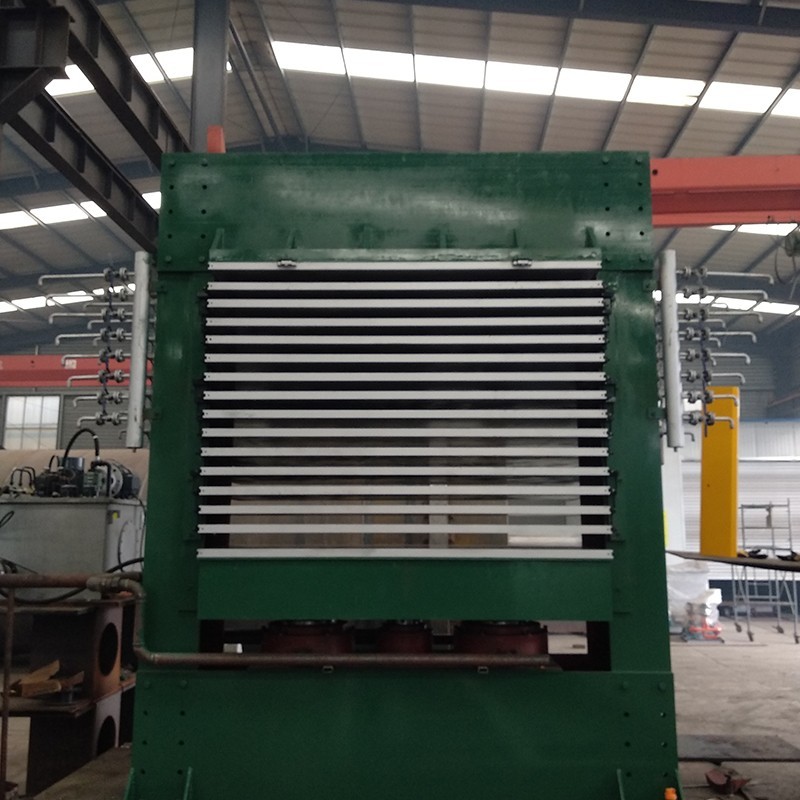

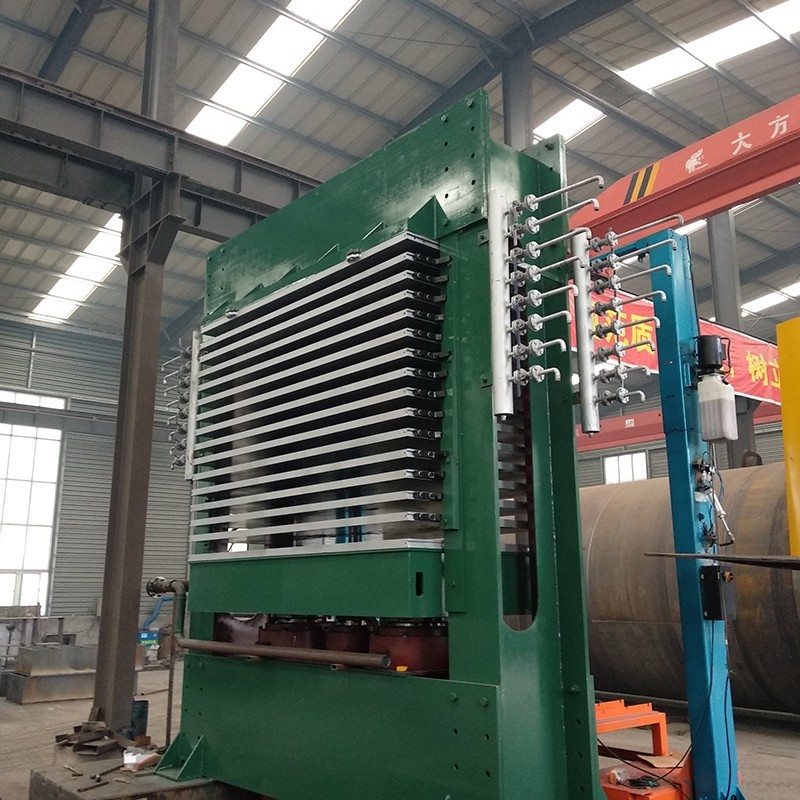

500T plywood hot press machine

Date:Nov 17, 2025
View:
About:OCEANPINES group comes from linyi city shandong province China. The main products are phenolic surface film,wood veneer, plywood production machinese(veneer peeling leathe,wood veneer dryer,hot press machine, cold press machine, glue spreader, cutting saw,boiler etc.). We also provide the relative technical support to help customers solve the problems encountered in the production process.Our company will cooperate with customers from all over the world with professional service and excellent quality

Send Inquiry

Plywood hot press machine is one of the main equipment in the plywood production line , which is used for pressing the glued slab. The hot press can be customized with different pressure and openings according to customer’s requirement.

If laminating nature veneer /phenolic film paper /melamine paper on based board, we can supply the stainless steel plates and cushion pads.

Nominal pressure	500T
opening	10
Cylinder No.&Cylinder diameter	2*φ360 mm
Working stroke	1050 mm
Platen size	2700137042 mm
Opening distance	100 mm
Upper/bottom/middle beam	900/900/400 mm
Thickness of the frame	35 mm
Main Power	15kw+5.5kw
Hydraulic system	1x280# aviation pump+1x25ml plunger pump
Weight	27 t
Overall dimensions	37502000 3700 mm
Frame	Combined frame
