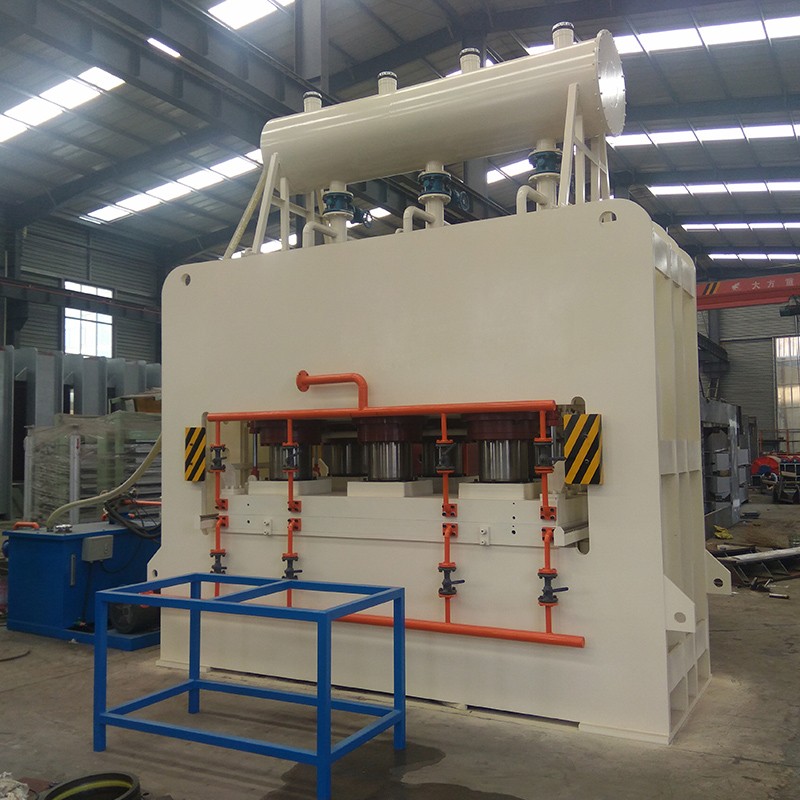

Short cycle laminating hot press

Short cycle laminating hot press machine is used for laminating melamine paper on MDF or Particle board. The main size is 4*8ft, 6*8ft, 6*9ft and 6*12ft.

Name	Short cycle laminating hot press
Nominal pressure	1200 T
Opening	1
Net opening	230 mm
Hot platen size	2600×1400×140mm(up),2600×1400×100mm (down)
Heating method	Heat transfer oils
Thickness of steel pate	50mm
Cylinder	Φ320mm×6pcs,Φ 80mm×2 pcs (for lifting)
Working stroke	250 mm
Oil pressure	26 Mpa
Upper beam	1000 mm
Bottom beam	900 mm
Thickness of the main frame	50mm
Hydraulic system	One full set
Control method	PLC control
Net weight	About 36000 KG
Loading side	Transverse size
Overall dimensions	350014003200 mm
