Hydraulic laminating machine
Date:Nov 14, 2025
View:
About:OCEANPINES group comes from linyi city shandong province China. The main products are phenolic surface film,wood veneer, plywood production machinese(veneer peeling leathe,wood veneer dryer,hot press machine, cold press machine, glue spreader, cutting saw,boiler etc.).
We also provide the relative technical support to help customers solve the problems encountered in the production process.Our company will cooperate with customers from all over the world with professional service and excellent quality

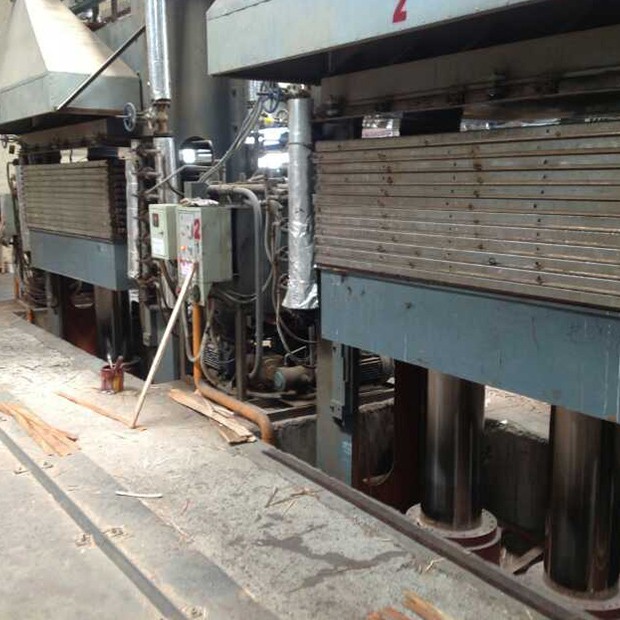

Film paper laminating hot press
The film paper laminating hot press machine is used for laminating phenolic surface paper on the plywood. The main size is 4*8ft.
Nominal pressure | 500T |
opening | 10 |
Cylinder diameter&Cylinder No. | φ360 mm*2 |
Working stroke | 1050 mm |
Platen size | 2700*1370*42 mm |
Opening distance | 100 mm |
Upper/bottom/middle beam | 900/900/400 mm |
Thickness of the frame | 35 mm |
Main Power | 15kw+5.5kw |
Hydraulic system | 1x280# aviation pump+1x25ml plunger pump |
Weight | 27 t |
Overall dimensions | 3750*2000 *3700 mm |
Frame | Combined frame |
